Alkali-Free Fiberglass Filter Mesh

Alkali-Free Fiberglass Filter Mesh (GL Series)

Manufactured from high-strength, high-modulus alkali-free fiberglass woven fabric with special surface treatment. Specifically designed for aluminum melt filtration, with a maximum operating temperature of 900°C.

Applications

• Automotive and motorcycle wheel hubs
• Steering knuckles, cylinder heads, pistons
• Aluminum alloy castings and precision die-cast parts
• Effectively removes gas bubbles, slag, and inclusions from aluminum melt

Advantages

• Most economical filtration solution for aluminum alloys
• Reduces casting defects such as porosity and slag inclusions
• Does not affect mechanical properties of castings
• Reduces iron contamination caused by wire mesh use
• Easy to recycle, lowering overall production costs

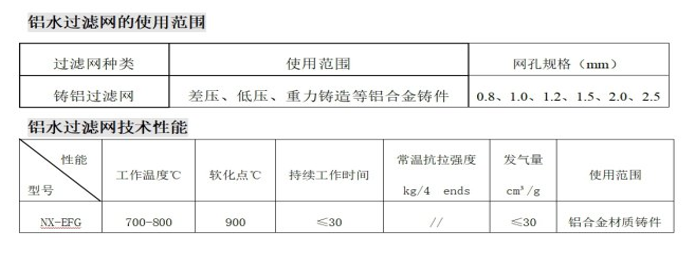

Specifications

• Applicable processes: Differential pressure casting, low-pressure casting, gravity casting
• Mesh aperture: 0.8, 1.0, 1.2, 1.5, 2.0, 2.5 mm
• Max operating temperature: 900°C
• Softening point: 900°C
• Continuous working time: ≤30 min
• Gas evolution: ≤30 cm²/g

Custom shapes and sizes available upon request. Complies with China National Standard GB/T 25139-2010.
